About Server

Introduction

The Throttr Server is a high-performance TCP server designed to process binary requests using the custom Throttr Protocol. It is implemented entirely in C++ and relies on Boost.Asio for non-blocking I/O operations, making it capable of handling thousands of concurrent clients without allocating one thread per connection.

If you're interested in architecture-level design, systems performance, or low-level networking, this article is for you.

All the source code is available under the official GitHub repository.

Get Started

Run the Server

There are a different ways to get Throttr Server running.

Using Binaries

This is the most easy and fast way to get an instance ready to accept connections and handle requests.

The first step is go to the [Throttr Server Repository][] and click on Releases.

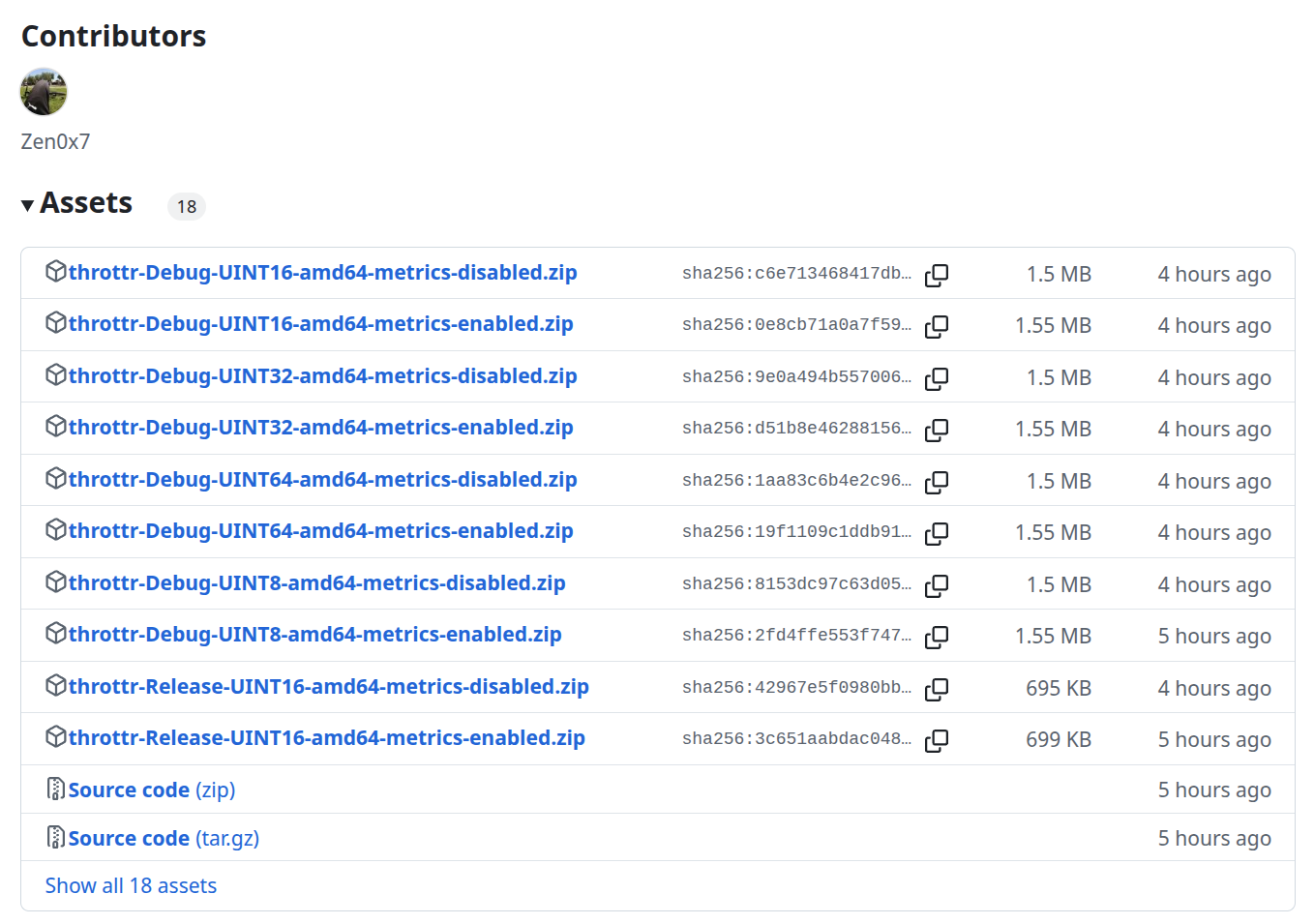

Assets per release

Download and extract it. You can run it by using the following command:

./throttr --port=9000 --threads=4

Using Docker

This is the most easy and fast way to get

// For Quotas/TTL and Buffers on AMD64

// Upto 255
docker run -p 9000:9000 ghcr.io/throttr/throttr:5.0.2-debug-uint8-amd64

// Upto 65.535
docker run -p 9000:9000 ghcr.io/throttr/throttr:5.0.2-debug-uint16-amd64

// Upto 4.294.967.295
docker run -p 9000:9000 ghcr.io/throttr/throttr:5.0.2-debug-uint32-amd64

// Upto 2^64 - 1
docker run -p 9000:9000 ghcr.io/throttr/throttr:5.0.2-debug-uint64-amd64

// For Quotas/TTL and Buffers on ARM64

// Upto 255
docker run -p 9000:9000 ghcr.io/throttr/throttr:5.0.2-debug-uint8-arm64

// Upto 65.535
docker run -p 9000:9000 ghcr.io/throttr/throttr:5.0.2-debug-uint16-arm64

// Upto 4.294.967.295
docker run -p 9000:9000 ghcr.io/throttr/throttr:5.0.2-debug-uint32-arm64

// Upto 2^64 - 1
docker run -p 9000:9000 ghcr.io/throttr/throttr:5.0.2-debug-uint64-arm64

Building from Source

Throttr Server requires:

  • Boost 1.87.0

The following guide has been built to Debian 12:

# Update system
apt update

# Install build dependencies
apt-get install -y lsb-release \
                   gnupg \
                   git \
                   wget \
                   build-essential \
                   cmake \
                   gcc \
                   make \
                   apt-utils \
                   zip \
                   unzip \
                   tzdata \
                   libtool \
                   automake \
                   m4 \
                   re2c \
                   curl \
                   supervisor \
                   libssl-dev \
                   zlib1g-dev \
                   libcurl4-gnutls-dev \
                   libprotobuf-dev \
                   python3 \
                   lcov \
                   doxygen \
                   graphviz \
                   rsync \
                   gcovr

# Getting Boost 1.87.0
wget https://archives.boost.io/release/1.87.0/source/boost_1_87_0.tar.gz

# Extract, move and compile
tar -xf boost_1_87_0.tar.gz
cd boost_1_87_0
sh bootstrap.sh --with-libraries=all
./b2 install debug \
             variant=debug \
             debug-symbols=on \
             link=static \
             runtime-link=static \
             --without-python

After that, you can clone the repository:

# Clone the repository
git clone https://github.com/throttr/throttr.git

# Move, build and test
cd throttr
mkdir build
cmake .. -DCMAKE_BUILD_TYPE=Debug -DBUILD_TESTS=ON
make
ctest

Definitions

This section defines the internal components and abstractions used throughout the Throttr Server codebase. Each concept listed here is a direct representation of a class, structure or pattern found in the code. Understanding these terms is key to grasping the flow of control, memory usage, and asynchronous behavior of the server.

Asio

Asio (Asynchronous I/O) is a C++ library designed for non-blocking I/O operations. The Throttr Server uses Boost.Asio (version 1.87.0) to handle all its TCP communications efficiently, enabling it to scale to many simultaneous clients without needing one thread per connection. Asio provides the foundational layer upon which all network logic in the server is built.

Server

The server class is responsible for listening on a configurable TCP port and accepting new incoming connections. Internally, it holds a boost::asio::ip::tcp::acceptor bound to a socket and a port. When a valid connection is received, it constructs a new session object to handle that client, and immediately re-arms the acceptor asynchronously to continue accepting new clients.

Acceptor

The acceptor is a Boost.Asio component (boost::asio::ip::tcp::acceptor) responsible for binding to a port and receiving new TCP connections. In Throttr, the acceptor is encapsulated inside the server and used to spawn session objects upon every accepted connection.

Session

A session represents an active TCP connection with a client. It reads incoming binary messages from the socket, decodes them using the Throttr Protocol, routes them to the state component for processing, and sends back binary responses. Each session uses a circular buffer to manage incoming data and a write queue (write_queue_) to group and dispatch responses asynchronously using boost::asio::async_write.

Buffer

The buffer in Throttr is a fixed-size 4096-byte array (std::array<std::byte, 4096>) used to temporarily store incoming data from the socket. Two pointers (buffer_start_, buffer_end_) define the valid region within the buffer. When fragmentation occurs, a compacting process using memmove is executed to maintain a contiguous memory region, reducing memory overhead and avoiding unnecessary reallocations.

IO Context

The io_context is the core engine of Asio’s asynchronous system. It dispatches I/O operations and executes registered handlers. Every asynchronous operation in Throttr passes through an io_context, allowing multiple connections to be multiplexed over a shared pool of threads.

Storage

The storage_ component represents the in-memory data layer of the server. It uses Boost.MultiIndex to store and query entries based on key and expiration time. It manages records efficiently, allowing the system to handle quotas, TTL, and key-value storage without requiring external persistence.

Chrono

The chrono library from the C++ standard library is used to manage time in Throttr. It handles all TTL calculations, expiration scheduling, and time comparisons with nanosecond precision. Time is critical for enforcing rate limits and purging expired entries deterministically.

Request

A Request is the decoded, internal representation of a binary message sent by a client. Each request contains typed fields (like TTL, key, or quota) and is mapped from raw bytes using strict bounds checks followed by reinterpretation (reinterpret_cast). Once decoded, a request is routed to the corresponding handler inside state.

Response

A Response is the structure generated after processing a request. It may include a status code, TTL, buffer data, or quota value depending on the request type. Responses are serialized into a binary format and pushed into the session’s write queue. They are then sent over the wire using async_write.

State

The state class is the core logic unit of the server. It handles request processing, owns the storage_ container, and manages expiration events. It implements all protocol operations. Each operation is strictly typed and bound to the binary structure defined in the protocol.

The class also owns an asio::strand to enforce serialized access to critical sections, and a steady_timer used to trigger expiration cleanup at the right moment.

Garbage Collector

The Garbage Collector is responsible for scanning and purging expired records in memory. It is built as a standalone service that interacts with the state component and schedules expiration cycles using a boost::asio::steady_timer.

Binary Reinterpretation

Throttr does not parse. It reinterprets.

When a binary message is received, the server does not iterate over bytes or copy data into temporary structures. Instead, it first verifies that the complete expected message is available in the buffer. Once validated, it applies a reinterpret_cast directly on the buffer to convert it into the appropriate request structure.

This means numeric fields such as TTL or quota must be encoded in little-endian format. There are no conversions or type checks post-cast: if the message passes the size check, it is assumed valid and directly mapped.

This zero-copy strategy reduces latency and eliminates overhead. The protocol design avoids dynamic parsing logic entirely—validation happens before reinterpretation. After that, it's raw pointer logic at maximum speed.

Project Structure

Folders

The /src folder

This folder contains the implementation files of the project. It holds the source code that defines the runtime behavior of the server.

The /src/include/throttr folder

This directory contains all public headers of the project, organized by functionality. It defines the main interfaces of the server and its internal behavior. Below are its primary subcomponents:

  • The app.hpp defines the app class, which serves as the top-level entry point to the server. It encapsulates the I/O context, manages the number of threads, and holds the shared server state. This class is responsible for starting and stopping the server. It provides two main methods: serve(), which initiates the server loop using the configured thread pool, and stop(), which halts execution.

  • The state.hpp file defines the central state class, which acts as the orchestrator of the entire server lifecycle. It manages the shared server state, stores connections, subscriptions, metrics, and services. The class is responsible for handling new connections (join) and safely removing them (leave). It includes critical components like a multi-indexed storage container, expiration and metrics timers, and various service classes to delegate responsibilities like garbage collection, response building, command handling, and subscription tracking. The state class is thread-safe via mutexes and strands, ensuring consistency across asynchronous operations. It also maintains metrics and lifecycle timestamps for advanced observability and analysis.

  • The server.hpp defines the server class, responsible for accepting incoming TCP connections and linking them to the shared server state. It initializes the acceptor on a specified port and triggers the asynchronous accept loop. Each accepted connection is handed off to a connection instance. The class encapsulates the networking entry point and ties it to the overall system state.

  • The connection.hpp defines the connection class, which manages an individual TCP session. It handles reading from the socket, message parsing, command dispatching, and writing responses. Each connection owns its read buffer, write queue, and holds a reference to the global server state. It uses boost::asio::async_read_some and async_write with custom memory allocators for performance. The start() method joins the connection to the global state and initiates the read loop. Incoming bytes are processed via try_process_next(), which extracts messages using get_message_size() and delegates them to the command handler. Outgoing responses are enqueued with send() and dispatched through write_next(). Metrics are collected if enabled, and the connection cleans itself up on close.

  • The connection_allocator.hpp defines a custom allocator system used to optimize memory allocation for asynchronous handlers in the connection class. It includes two key components: connection_handler_memory, which provides a small fixed-size buffer for reuse during read/write operations, and connection_handler_allocator<T>, a template-compatible allocator that wraps around the handler memory. This mechanism reduces dynamic memory allocations by reusing stack-like storage for small lambda captures inside Asio’s async_read_some and async_write. It is particularly useful for high-throughput scenarios, minimizing heap pressure and improving cache locality during TCP operations.

  • The connection_metrics.hpp defines the metrics structures used to monitor network and memory activity for each TCP connection, available only when the ENABLED_FEATURE_METRICS flag is active. It includes connection_network_metrics to track bytes read, written, published, and received; connection_memory_metrics to monitor memory usage; and connection_metrics, which aggregates all of these along with per-command metrics in a fixed-size array. These structures enable fine-grained observability of each connection's behavior, facilitating performance tuning and debugging in production environments.

  • The metric.hpp defines the metric structure, used to collect and compute usage statistics such as count, historical accumulation, and per-minute activity. It is only included when ENABLED_FEATURE_METRICS is defined. Each metric consists of three atomic counters, providing thread-safe tracking of operations. The mark() method registers new events, while compute() updates the per-minute summary. This structure supports move and copy semantics and serves as the building block for higher-level metrics tracking in the system.

  • The protocol_wrapper.hpp defines a compile-time alias THROTTR_VALUE_SIZE that determines the size type used for quota and TTL values in the protocol. This alias is conditionally set based on build-time flags such as THROTTR_VALUE_SIZE_UINT8, THROTTR_VALUE_SIZE_UINT16, etc. It serves as a flexible configuration layer over the core protocol definitions in protocol.hpp, allowing the server to adjust value granularity and memory footprint without altering the implementation logic.

  • The storage.hpp defines the storage_type, a multi-index container based on Boost.MultiIndex, used to store and retrieve entry_wrapper instances efficiently. It supports hashed access by request key via the tag_by_key index. This structure allows fast lookup and management of active requests in the system, serving as a central component for request deduplication, throttling, and expiration logic.

  • The entry_wrapper.hpp defines the entry_wrapper structure, which encapsulates a request's key and its corresponding request_entry. It includes an expired_ flag to mark obsolete entries, and optionally a pointer to entry_metrics when metrics are enabled. The key is stored as a std::vector<std::byte>, and a method key() returns it in the wrapped request_key form used by the storage index. This struct is the fundamental unit stored in the multi-index container.

  • The entry_metrics.hpp defines the entry_metrics struct, which tracks usage statistics for a specific request entry. It contains atomic counters for read and write operations, including total accumulators and per-minute rates. This struct is conditionally compiled when metrics are enabled and is used in conjunction with entry_wrapper to monitor access patterns and performance.

  • The message.hpp file defines the message class, which encapsulates data for outbound communication. It holds a write_buffer_ for raw payload bytes and a buffers_ vector for zero-copy transmission using boost::asio::const_buffer. The recyclable_ flag allows reuse of message instances when appropriate. This structure is shared across the system and designed for efficient asynchronous sending.

  • The subscription.hpp file defines the subscription struct, which links a connection to a specific channel. It stores the connection_id_ as a UUID, the subscribed channel_, and a timestamp subscribed_at_ in nanoseconds. When metrics are enabled, it also tracks a shared pointer to subscription_metrics. This structure is central to the Pub/Sub model within Throttr.

  • The subscription_metrics.hpp file defines the subscription_metrics struct, which captures I/O metrics for individual subscriptions. When metrics are enabled, it tracks read_bytes_ and write_bytes_ using the metric structure. The class is non-copyable and non-movable to ensure thread safety and prevent accidental duplication of metrics data.

  • The time.hpp file provides helper functions to calculate expiration points (get_expiration_point) and remaining TTL (get_ttl) based on the configured time unit (ttl_types) and a raw byte span (std::span<const std::byte>). It uses value_type (defined by THROTTR_VALUE_SIZE) to support variable TTL sizes (8, 16, 32, or 64 bits). The byte span is interpreted in little-endian order without relying on memcpy, and the resulting duration is added to the current time using std::chrono. Both functions are agnostic to time resolution, making them flexible and ready for benchmarking or instrumentation.

  • The utils.hpp file provides utility functions primarily focused on debugging and logging. It includes hexadecimal conversion helpers such as buffers_to_hex, span_to_hex, string_to_hex, and id_to_hex, which turn binary buffers and UUIDs into human-readable hexadecimal strings. These are useful for inspecting raw protocol data. Additionally, the file defines to_string(...) overloads for the ttl_types, attribute_types, and change_types enums, enabling readable log output or diagnostics. All functions are inline or static and kept header-only for maximal inlining and minimal overhead.

  • The version.hpp file defines a single inline function get_version(), which returns the current semantic version of the Throttr server as a std::string_view. This provides a lightweight, compile-time retrievable identifier of the build version, useful for diagnostics, logging, and compatibility checks between clients and servers. The current version string is "5.0.2".

The services folder

  • The commands_service.hpp defines the commands_service class, which acts as a centralized registry and dispatcher for all supported request types in the server. Each command is mapped to a corresponding static function pointer using a fixed-size array of 32 entries. This design ensures constant-time dispatch and avoids dynamic polymorphism overhead. The constructor pre-populates the commands_ array with default handlers from base_command::call, and then overrides each index with the correct handler for supported request_types, such as insert, set, query, update, purge, list, stat, subscribe, publish, and others. This structure allows fast, deterministic routing of requests to their proper command logic.

  • The create_service.hpp defines the static method create_service::use, responsible for inserting or setting key-value pairs into the internal state storage. It calculates the expiration time based on the TTL type and value, constructs an entry_wrapper containing the key, value, and metadata, and inserts it into the state->storage_. If the key is successfully inserted, the method schedules a new garbage collection timer using the earliest non-expired expiration point. It also tracks write and read metrics when metrics are enabled. The logic is performance-aware and designed for low-latency operation with relaxed memory ordering and optimization notes for large datasets.

  • The find_service.hpp provides two static methods to retrieve entries from the internal storage. The method find_or_fail attempts to find a non-expired item by key from the state index, returning a std::optional<storage_iterator>. If the item is found and valid, it increments the read metric counter (if enabled) and returns the iterator. The method find_or_fail_for_batch wraps this behavior for batch operations, and appends a failure marker (state::failed_response_) to the output batch if the key is not found. This service centralizes read path logic and ensures consistent failure handling for both single and batched queries.

  • The garbage_collector_service.hpp defines the logic for expiration and cleanup of outdated entries. The schedule_timer method sets a timer using Boost.Asio that will trigger garbage collection when the next expiration point is reached. The run method locks the state, scans all entries for expiration, and either marks them as expired or erases them if they have surpassed a safety margin. After processing, it recalculates the next nearest expiration and reschedules itself accordingly. This service ensures memory and storage integrity without requiring external triggers, running autonomously within the server loop.

  • The messages_service.hpp defines a central dispatch system for message size evaluation. This service maps each supported request type to a corresponding function that computes the exact size of the incoming payload, based on the binary protocol format. The constructor initializes a fixed-size array of 32 function pointers, each handling a specific request type such as insert, get, set, publish, etc. This structure enables fast and predictable parsing of incoming binary data, acting as the first decoding stage before command execution. Invalid or unrecognized types are routed to a default handler returning zero, allowing safe fallback for unknown inputs.

  • The metrics_collector_service.hpp defines a conditional service (enabled only if ENABLED_FEATURE_METRICS is defined) responsible for computing and aggregating per-command metrics. Internally, it maintains an array of 32 metric instances—one per command type. Every minute, a timer triggers run(), which updates read/write counts for each stored key and invokes compute() on every connection’s metric set. This design supports real-time performance visibility and historic accumulation (e.g., per-minute rates and total counters). The compute_all() method finalizes the aggregation cycle. All activity is dispatched via strand_ to ensure thread safety.

  • The messages_service.hpp defines registers message size-parsing functions for each supported request_types enum value. It uses a fixed-size array of 32 function pointers (message_types_), each pointing to a function that determines the complete size of a specific request type based on the provided buffer. These functions check the minimum required header size and, when applicable, parse additional fields like key size or value size to return the total expected size of the message. If the buffer is too small or the type is unknown, a fallback function invalid_size() returns 0. This structure supports zero-copy parsing and avoids overreads, which is essential for safely handling partially received or fragmented binary TCP messages. It also enables consistent and centralized message framing logic across all Throttr request types.

  • The subscriptions_service.hpp defines the subscriptions_service class, which manages active client subscriptions to channels. It uses a Boost.MultiIndex container (subscription_container) to allow efficient lookups by both connection_id_ and channel_. The class exposes a single method, is_subscribed(), that checks whether a given connection ID is already subscribed to a specific channel. This is performed using the by_connection_id index and iterating over matching entries. The internal container is protected by a std::mutex, allowing thread-safe operations when used correctly. This service supports the internal pub/sub mechanism of Throttr, ensuring efficient tracking of channel listeners.

  • The update_service.hpp defines the update_service class, responsible for applying runtime modifications to storage entries, including quota updates via atomic operations (patch, increase, decrease) and TTL adjustments (patch, increase, decrease) based on the configured unit (seconds, milliseconds, or nanoseconds); it includes logic to reschedule the garbage collector when the updated key matches the scheduled one.

The commands folder

  • The base_command.hpp defines the base_command class, which acts as the fallback handler for unrecognized or unsupported request types; its static call() method is invoked by the commands_service when no specialized command is found, and it simply appends a predefined failure response (state::failed_response_) to the output batch without performing any processing.

  • The channel_command.hpp implements the logic for handling CHANNEL requests, which query the current state of active subscriptions for a specific channel; when invoked, it looks up the channel in the state's subscription index, and if found, writes the number of matching subscriptions followed by each subscriber’s UUID, subscription timestamp, and traffic metrics (read/write bytes) to the response buffer, otherwise it returns a failure response—this mechanism enables introspection of per-channel activity and is only available when the ENABLED_FEATURE_METRICS flag is defined.

  • The channels_command.hpp handles the CHANNELS request, which returns a list of all active channels across the system. If the ENABLED_FEATURE_METRICS flag is not defined, the command fails immediately. Otherwise, it delegates response construction to response_builder_service::handle_fragmented_channels_response, which serializes the list of channels into the write buffer. This command provides global visibility over the pub/sub topology, useful for observability and monitoring purposes.

  • The connection_command.hpp handles the CONNECTION request, which queries detailed information about a specific connection given its UUID. It parses the request, locks the connection map, and attempts to locate the connection. If found, it responds with success_response_ and delegates serialization to write_connections_entry_to_buffer, excluding internal metrics if the connection is not the sender. If the UUID is unknown, it replies with failed_response_. This command enables precise inspection of peer connection states.

  • The connections_command.hpp handles the CONNECTIONS request, which returns a full listing of all active connections in the server. If metrics are disabled (ENABLED_FEATURE_METRICS not defined), the server responds immediately with failed_response_. Otherwise, it uses response_builder_service::handle_fragmented_connections_response to serialize and fragment the response based on the state of all current connections. This allows introspection and monitoring of the system’s connection pool.

  • The info_command.hpp handles the INFO request, producing a compact binary snapshot of the current state of the server. It includes system uptime (epoch seconds), global request statistics (total and per minute), per-command metrics, network I/O (read/write bytes per connection), memory usage (by counters and raw buffers), and Pub/Sub state (channels and subscriptions). At the end, it appends the version string (padded to 16 bytes). This response is intended for system introspection tools or monitoring dashboards and is only serialized if metrics are enabled.

  • The insert_command.hpp handles creation of a new counter entry, parsed from the binary request using request_insert::from_buffer. It delegates the actual insertion to create_service::use(...), passing key, quota, TTL type and TTL. If successful, it appends a single-byte success response to the batch (0x01); otherwise, it appends failure (0x00). This command is only valid for inserting counter-type entries and does not support raw buffer types.

  • The list_command.hpp streams all stored entries to the client using a fragmenting mechanism. It leverages response_builder_service::handle_fragmented_entries_response, which paginates the entries (chunk size = 2048 bytes). Each entry is serialized via write_list_entry_to_buffer, allowing structured response construction. Metrics and debug logs are omitted unless NDEBUG is undefined. The request body (view) is ignored; LIST always returns all available keys, regardless of filters or client state.

  • The publish_command.hpp distributes a message to all subscribers of the specified channel, excluding the sender, by constructing a message object with the payload serialized as 0x03 + size (LE) + payload and dispatching safe copies to each active connection via state->connections_.

  • The purge_command.hpp defines a command that attempts to remove a key from storage if it exists and is not expired, returning either a success or failure response accordingly.

  • The query_command.hpp defines the logic to retrieve either the value and TTL information for a given key (QUERY) or just the TTL and value metadata (GET), assembling the response in binary format.

  • The set_command.hpp file provides the implementation of the set_command class, which handles SET requests by storing a key-value pair along with TTL metadata into the server’s internal state, returning a success or failure byte.

  • The stat_command.hpp file implements the stat_command class, responsible for responding to STAT requests with live read/write metrics. If the metrics feature is disabled at compile-time, the command returns a failure response immediately. Otherwise, it extracts counters such as reads/writes per minute and total accumulators, serializes them as 64-bit integers into the write buffer, and appends them to the response batch.

  • The stats_command.hpp file defines the stats_command class, which handles STATS requests by collecting and serializing global statistics for all entries in the system. If the metrics feature is disabled at compile-time, it immediately returns a failure response. Otherwise, it delegates the response construction to response_builder_service::handle_fragmented_entries_response, enabling efficient fragmentation and streaming of large data sets.

  • The subscribe_command.hpp file defines the subscribe_command class, which processes SUBSCRIBE requests by registering a connection to a specific channel. The command extracts the channel from the request, acquires a lock on the subscriptions_ map, and attempts to insert a new subscription entry (connection_id, channel). A success or failure response is appended to the output batch depending on whether the insertion was successful. The operation is thread-safe and optionally logs the result if debug mode is enabled.

  • The unsubscribe_command.hpp file defines the unsubscribe_command class, which handles UNSUBSCRIBE requests by removing a subscription associated with a connection and a specific channel. It first checks if the connection is actually subscribed to the given channel. If not, it responds with a failure byte. If the subscription exists, it acquires the by_connection_id index from the internal subscription multimap, locates all entries tied to the connection, and removes those matching the requested channel. A success byte is appended to the response batch. The process is thread-safe and logs the operation when compiled in debug mode.

  • The update_command.hpp file defines the update_command class, responsible for handling UPDATE requests in Throttr. When invoked, the call method parses the incoming buffer to extract the key and requested attribute change (such as ttl or quota). It locates the corresponding entry using the internal finder_, and if found, attempts to apply the modification through the update_service. If the modification is successful, a success byte is appended to the response batch; otherwise, a failure byte is returned. Metrics are updated when the ENABLED_FEATURE_METRICS flag is active. Debug logs provide detailed tracing of each update operation, including key, change type, and outcome.

  • The whoami_command.hpp file implements the whoami_command class, which handles the WHOAMI request within Throttr. This command is used to identify the current client connection. When invoked, the call method adds a success byte to the response and appends the UUID of the connection to the write buffer. The UUID is extracted directly from the connection object and returned to the client. This response allows clients to confirm their unique identity within the system. In debug builds, a log entry is generated with a timestamp and the connection UUID that triggered the request.

About Connections

This section provides a comprehensive breakdown of how connections are handled within the Throttr server. The connection mechanism is designed to be lightweight, asynchronous, and highly efficient, supporting thousands of concurrent clients with minimal memory overhead.

Lifecycle of a Connection

Each incoming TCP client connection is accepted and wrapped inside a throttr::connection object. This object encapsulates all connection-specific state, including socket management, buffers, metrics, and message batching.

  • Creation: When a new socket is accepted, a connection is instantiated with a generated UUID and a reference to the shared state.
  • Startup: Upon calling start(), the connection logs its metadata and begins the read loop with do_read().

Integration with Global State

Connections are registered into the central state via state_->join(this) on start, and removed on destruction via state_->leave(this).

The state object provides:

  • The UUID generator (id_generator_)
  • Message type parsers (messages_)
  • Command dispatchers (commands_)
  • Optional metrics collectors (metrics_collector_)

This tight coupling ensures that each connection is context-aware and participates in system-wide tracking and orchestration.

Buffering Model

Each connection maintains an internal fixed-size buffer (buffer_, 8096 bytes) and uses two pointers: buffer_start_ and buffer_end_ to track the read window.

  • Incoming data is written to buffer_.data() + buffer_end_.
  • After processing a message, buffer_start_ advances.
  • If needed, compact_buffer_if_needed() slides unprocessed bytes to the beginning to free space without allocations.

Message Parsing and Execution

Throttr uses a zero-copy, span-based model to decode and dispatch requests:

  1. Upon receiving bytes, try_process_next() determines if a complete message has been received.
  2. The message size is inferred using get_message_size(), based on the request type's registered parser.
  3. If a full message is present:
    • It is passed to the corresponding command handler.
    • Metrics are updated if enabled.
    • The command populates a message object for response.

The same loop continues as long as more complete messages are available in the buffer.

Asynchronous Read & Write

Throttr is fully non-blocking, relying on Boost.Asio’s event-driven model.

Reading

  • do_read() schedules a new async_read_some() into the available buffer window.
  • On completion, on_read() validates the result and passes control to the processing loop.

Writing

  • Outgoing responses are queued in pending_writes_, a FIFO deque.
  • send() schedules the write via on_send(), which triggers write_next() if no other write is in progress.
  • on_write() finalizes the write, optionally recycles the message, and continues the queue.

This design ensures minimal write contention and avoids simultaneous write races.

Message Recycling

The message object used for responses can be reused. If a message is marked recyclable_, it is cleared and retained for future use after a successful write.

This mechanism reduces heap allocations and promotes buffer reuse, which is critical in high-throughput systems.

Metrics Collection

If compiled with ENABLED_FEATURE_METRICS, each connection:

  • Tracks inbound/outbound byte counts.
  • Records command type distribution.
  • Updates the global metrics collector (state_->metrics_collector_).

This enables deep observability into traffic and usage patterns per connection, per command.

UUID & Client Identity

Each connection is assigned a unique boost::uuids::uuid (id_) at creation time. This ID is:

  • Exposed via the WHOAMI command.
  • Used in logs and traces.
  • Helps identify and correlate client behavior throughout the system.

Error Handling & Cleanup

  • Read or write errors result in a graceful shutdown via close(), which shuts down and closes the socket.
  • On destruction, the connection ensures it unregisters from the global state and logs its closure (in debug builds).

Components

This section describes the key architectural components that form the Throttr Server runtime. Each part contributes to the server's ability to accept, process, and respond to high-volume binary requests in a non-blocking, event-driven model.

IO Context and Threads

The boost::asio::io_context is the core event loop responsible for dispatching all asynchronous I/O operations in the server. It is created with an internal thread pool size defined by the --threads command-line argument or the THREADS environment variable.

Each thread calls .run() on the same io_context, allowing it to concurrently handle multiple socket operations while remaining fully asynchronous.

This design enables high throughput with minimal context switching overhead and no blocking threads, unless explicitly introduced by system calls or bad design.

Key points:

  • One io_context instance serves the entire server.
  • Threads are launched using std::jthread to automatically handle joining.
  • The main thread also calls .run() to participate in the work.

Listener and Acceptor

The listener class encapsulates a boost::asio::ip::tcp::acceptor, which is bound to a user-defined port at startup.

When a new TCP connection arrives:

  1. The server asynchronously accepts it using async_accept().
  2. A new connection instance is created using the accepted socket.
  3. The acceptor immediately re-arms itself to wait for the next connection.

This loop is fully non-blocking and ensures that the server can handle thousands of simultaneous connections without delay.

Session Lifecycle

Each connection handles one TCP connection and is responsible for the full lifecycle of that connection: reading data, decoding messages, processing them, and writing responses.

Connections live independently and are reference-counted via std::shared_ptr.

Reading and Processing

Incoming data is read into a circular buffer of 4096 bytes. The connection tracks the valid region of the buffer using two pointers: buffer_start_ and buffer_end_.

When new data arrives:

  1. The read handler updates buffer_end_.

  2. The method try_process_next() is called to extract as many full messages as possible.

  3. For each complete message:

    • Its size is computed via get_message_size().
    • A span over the message is passed to the appropriate handler.
    • The handler returns a response object which is queued for writing.

The buffer is compacted using memmove() when necessary.

Writing and Queuing

Responses are queued in a FIFO structure using message instances.

When do_write() is called:

  1. All buffered responses are transformed into a batch of boost::asio::const_buffer.
  2. async_write() is called with this batch.
  3. Once the write completes, the queue is cleared and do_read() resumes.

A custom allocator (connection_handler_allocator) is used to minimize heap allocations for small handlers by reusing a preallocated region.

Memory Optimization

Throttr is designed for high-performance operation with minimal memory churn and zero-copy principles wherever possible. This section outlines the strategies used to reduce heap allocations and maintain efficient runtime behavior.

Handler Allocator

The connection_handler_memory and connection_handler_allocator<T> classes work together to optimize memory usage in Asio’s async handlers.

When Asio launches a lambda (such as a read or write callback), it normally allocates memory on the heap. Throttr overrides this behavior by injecting a preallocated buffer through a custom allocator. If the handler fits within this space, it avoids dynamic memory altogether.

Benefits:

  • Reduces pressure on the heap allocator.
  • Avoids per-handler new and delete.
  • Increases CPU cache locality.

Buffer Management

The read buffer is implemented as a ring-like fixed array of 4096 bytes. Instead of copying every read into a new container, the connection uses a pair of pointers (buffer_start_ and buffer_end_) to track the valid segment.

If space runs out:

  • If all data was read and processed, the buffer is reset.
  • If partial data remains, it is compacted to the beginning via std::memmove().

This keeps the memory model simple, avoids fragmentation, and ensures alignment for the reinterpret_cast operations on protocol structs.

Configuration and Entry Point

The entry point of the server is defined in main.cpp, which handles CLI parsing and environment variable resolution. The available options are:

  • --port: sets the listening TCP port (default: 9000).
  • --threads: number of threads to run (default: 1, or read from THREADS env var).

After parsing:

  1. A new app instance is created using the given config.
  2. The call to .serve() initializes the listener, spawns the worker threads, and runs the io_context.

This layer is intentionally minimal — all actual logic is delegated to the throttr::app and its contained components.

State

The state class is the central coordination unit of the server. It holds and manages all core services, acting as the nexus for command execution, memory management, and connection lifecycle.

Responsibilities

  • Maintains the registry of all active connections, indexed by UUID.
  • Stores the commands dispatcher used to resolve and invoke handlers for each request_type.
  • Holds the messages dispatcher responsible for decoding message lengths and payload formats.
  • Provides access to the garbage_collector, which schedules and purges expired entries.
  • Manages the subscriptions index and controls lifecycle of publish/subscribe operations.
  • Exposes a shared uuid generator for connection ID assignment.
  • Optionally tracks and exports global metrics if the feature is enabled.

Design characteristics

  • All connections invoke commands through a reference to the shared state instance.
  • Uses a strand to serialize operations on shared memory and ensure thread safety.
  • Provides join() and leave() methods to register and clean up connections.
  • Implements a mutex-protected container for the connection map and subscription index.

Internals

  • Shared services are initialized at construction (commands, finder, response_builder, etc.).
  • Optional services (like metrics) are compiled in conditionally.
  • Time-based services like the garbage collector and metrics timer are scheduled via steady_timer on the shared I/O context.
  • The state instance is designed to be long-lived and safe for concurrent access across thousands of sessions.

This component embodies the runtime context of the server and acts as the root service container for all logic layers.

Commands

The commands component is responsible for dispatching request logic. Every incoming request_type is mapped to a corresponding handler function, which is stored in a fixed-size array commands_[].

Responsibilities

  • Maps each request type to its logic executor.
  • Acts as the execution layer of the protocol.
  • Ensures the correct command is invoked based on message decoding.

Implementation details

  • Internally uses an std::array<command_callback, 32> where each index corresponds to a specific request_type.
  • Each command is a function with the signature:
    • (shared_ptr<state>, request_types, span<const byte>, write_buffers, write_vector, shared_ptr<connection>)
  • The handler modifies the write buffer using shared memory and prepares a response accordingly.
  • All command handlers share a common structure, ensuring predictable and unified behavior.
  • Unrecognized or disabled commands fallback to base_command::call.

Efficiency notes

  • Commands are executed without virtual dispatch or runtime allocations.
  • The fixed array ensures O(1) access time.
  • All handlers operate directly on preallocated memory buffers.
  • This architecture enables high-throughput command processing with minimal overhead.

This component defines the behavioral core of the server by implementing each supported operation (insert, update, set, publish, etc.) in its own dedicated command unit.

Messages

The messages component defines the logic for resolving message sizes dynamically from raw input buffers. It enables zero-copy parsing by determining the exact byte length required to consider a message "complete" for a given request_type.

Responsibilities

  • Maps each request_type to a function capable of calculating the required byte size for that type.
  • Enables early validation before dispatching commands, ensuring that the connection has received enough bytes.
  • Allows the system to process incoming binary streams efficiently, without reallocations or temporary copies.

Implementation details

  • The internal array message_types_[] holds one function pointer per possible message type (std::array<size_callback, 32>).
  • Each callback receives a std::span<const std::byte> and returns the full expected size of the corresponding message.
  • All functions perform minimal checks (usually validating size headers and extracting key lengths or payload sizes).
  • For complex message types (e.g., set, publish, update), the functions parse specific byte positions to extract field lengths and compute total size.
  • Incomplete messages return 0, indicating that the parser should wait for more bytes.

Efficiency notes

  • No heap allocation or data copying occurs during size resolution.
  • Size functions avoid unnecessary branching and rely on fixed offset arithmetic.
  • Designed for ultra-low-latency processing of streaming TCP data, especially under high-throughput conditions.

This component ensures that each message is parsed only when it's fully available, which is critical for a binary protocol system operating at scale.

Metrics Collector

The metrics collector component is available only if ENABLED_FEATURE_METRICS is defined. It tracks the number of reads, writes, and processed commands.

Each connection may also have its own connection_metrics object for per-session statistics. The collector supports real-time observability and post-analysis of traffic.

How it works

  • The collector uses a metrics_timer_ in the shared state, which fires every 60 seconds.
  • Upon each tick, the collector:
    • Iterates over all non-expired entries in the system.
    • Retrieves the number of reads and writes for each entry using atomic operations.
    • Stores per-minute rates and updates accumulators.
    • Also processes per-command metrics for each active connection.
  • After processing entries and connections, it calls compute_all() to finalize the global snapshot.

Internals

  • Metrics are stored using atomic counters for both current-minute and accumulated stats.
  • The timer is scheduled on the strand_ of the state, ensuring serialized access.
  • Each entry contains a metrics_ pointer with six fields: current read/write counters, accumulators, and computed per-minute stats.
  • Connections have their own metrics_ structure, which includes 32 command slots for tracking usage patterns.
  • metric::compute() is responsible for updating internal statistics from raw counters.
  • The system avoids locking entirely by relying on relaxed atomic operations and strand-serialized rescheduling.

This design provides high-frequency metric updates with minimal performance overhead, and maintains accurate telemetry even under high throughput.

Garbage Collector

Although not a separate class, the garbage collection behavior is implicit in how the system recycles buffers and message objects.

Each connection maintains a message object that is cleared and reused after every write. The recycling mechanism avoids unnecessary memory allocations and helps maintain consistent performance.

How it works

  • The method schedule_timer() receives a proposed expiration timestamp. If the time has already passed, it triggers the collector immediately by calling run(). Otherwise, it sets a timer to fire at the exact moment.
  • When the timer fires, run() is called. It:
    • Locks the shared state to avoid concurrent access.
    • Iterates through all entries in the tag_by_key index.
    • Marks entries as expired if their TTL has passed.
    • Physically erases entries that have been expired for more than 10 seconds.
    • Determines the next expiration point and re-schedules itself if needed.

Internals

  • All expiration decisions and erasures are done inside run(), which guarantees consistency.
  • The scheduling is dynamic and based on the real expiration of stored keys.
  • The timer is only active when there are pending entries, keeping overhead minimal.
  • The service logs key operations in debug mode (when NDEBUG is not defined).
  • The whole lifecycle runs inside a strand-protected context by virtue of being synchronized via an external mutex (state->mutex_), not an internal strand.

This design replaces the older scheduler with a more explicit, transparent collector that ensures data integrity while maintaining low memory overhead and deterministic behavior.

Connection Allocator

This component includes both connection_handler_allocator<T> and connection_handler_memory, designed for high-performance memory allocation in asynchronous operations.

It provides custom memory management for handlers used in Boost.Asio's async_read and async_write, minimizing heap allocations and reducing latency.

How it works

  • Every connection owns a small stack-allocated buffer (storage_) embedded in a connection_handler_memory object.
  • When the server initiates an async read or write, it binds the associated lambda or handler using bind_allocator, injecting the custom allocator.
  • If the handler fits in the reserved space and no other handler is currently active, it is allocated from this stack buffer.
  • Otherwise, it falls back to standard heap allocation via operator new.

This pattern is ideal for small lambdas and avoids unnecessary heap pressure during high-concurrency workloads.

Internals

  • connection_handler_memory holds:
    • A 16-byte aligned buffer (std::byte storage_[16]) to store small handlers.
    • A bool in_use_ flag to track usage.
  • connection_handler_allocator<T>:
    • Acts as a wrapper for the memory pool.
    • Overrides allocate() and deallocate() to use connection_handler_memory.
    • Satisfies the C++ standard allocator concept for compatibility with Boost.Asio.

This mechanism enables predictable allocation behavior and supports millions of requests per second without allocator contention.

Response Builder

The response_builder_service is responsible for encoding structured response data into the outgoing buffer, depending on the request type and available data. It's used by the commands logic when composing replies to client queries.

How it works

  • When a command requires a structured response (e.g., CONNECTIONS or GET), it invokes the corresponding method in the response_builder_service.
  • These methods append raw binary data directly into the write_buffer_ of the connection’s reusable message instance.
  • The builder uses pre-known offsets and binary formats for each type of response to ensure efficient, compact serialization.

This approach ensures all responses follow the Throttr protocol spec, maintaining consistency and eliminating overhead from generic serialization libraries.

Internals

  • The service is stateless and uses only static methods.
  • Each method receives:
    • A reference to the destination buffer (std::vector<std::byte>&).
    • Additional context-specific parameters (e.g., UUIDs, TTLs, metrics).
  • The method write_connections_entry_to_buffer is one of the most complex, writing 227 bytes per connection including:
    • UUID (16 bytes)
    • IP version + address (17 bytes)
    • Port (2 bytes)
    • 21 metrics * 8 bytes each (168 bytes)
  • It supports buffer fragmentation by returning how many entries were written per invocation, useful when slicing oversized payloads.

The builder is zero-copy and protocol-bound, designed for raw throughput and minimal latency.

Finder

The finder component is responsible for retrieving entries from the in-memory store. It ensures the existence and validity of keys before commands proceed, acting as a gatekeeper for operations like GET, SET, INCR, etc.

It is invoked through state->finder_->find_or_fail(...), returning a valid iterator or signaling failure.

How it works

  • Commands delegate lookup responsibility to the finder, which performs a search in the tag_by_key index of the storage.
  • If the key exists and has not expired, the iterator is returned.
  • If not found or marked as expired, std::nullopt is returned, and depending on context, the failure is registered in a batch buffer.
  • If metrics are enabled (ENABLED_FEATURE_METRICS), each successful read increments the key’s reads_ counter for later aggregation.

This approach allows commands to remain agnostic of the underlying indexing and expiration logic.

Internals

  • The find_service is a stateless singleton with static methods.
  • Two methods are provided:
    • find_or_fail(...): simple lookup with optional metrics tracking.
    • find_or_fail_for_batch(...): same as above, but also appends a failure marker to the batch buffer if lookup fails.
  • The underlying storage uses Boost.MultiIndex with a tag_by_key index for fast key-based lookups.
  • Expired keys are filtered out by checking the .expired_ flag, preventing access to stale data without needing immediate deletion.

This component is lightweight, synchronous, and tightly coupled with the command lifecycle, enabling deterministic and efficient behavior.

Creator

The creator component is responsible for inserting new entries into the in-memory store. It is primarily used by commands like SET, INSERT, and SUBSCRIBE to allocate new records without overwriting existing ones unless specified.

Responsibilities

  • Create new entries only if they don’t already exist (when as_insert is true).
  • Calculate and assign the expiration timestamp based on the TTL and its type.
  • Attach metrics to each entry for read/write tracking.
  • Trigger the garbage collector scheduler if the inserted key’s expiration is earlier than currently scheduled entries.

Core behavior

  • The method create_service::use(...) receives a key, value, TTL details, entry type, and request ID.
  • It creates a new entry_wrapper with the decoded key and value, computes the expiration time, and tries to insert it into the state->storage_.
  • If insertion succeeds, it performs the following:
    • Updates metrics (writes_) on the new entry.
    • Iterates over the index to determine if the new expiration time should preempt the garbage collector’s timer.
    • Posts a task to the strand to reschedule if needed, minimizing contention.

Efficiency notes

  • The component uses Boost.MultiIndex for efficient key lookup and insertion.
  • The current implementation performs a linear scan over the storage to find the earliest expiration point, which could be optimized by storing the earliest timestamp separately.
  • TTL handling supports multiple modes (depending on ttl_types), abstracted behind get_expiration_point(...).

This component plays a central role in maintaining correct memory hygiene, timing behavior, and system consistency during dynamic entry creation.

Updater

The updater component is responsible for mutating existing attributes of entries, such as quota values or expiration time (TTL). It ensures updates are valid, atomic, and do not violate consistency or overstep logical constraints.

Responsibilities

  • Apply arithmetic or direct value mutations to quota-related fields using std::atomic.
  • Modify TTL values based on the ttl_type (seconds, milliseconds, nanoseconds), supporting patch, increase, or decrease operations.
  • Post expiration reschedule tasks when the modified key is currently the one scheduled for purging.

Core behavior

  • update_service::apply_quota_change(...) receives a target entry and mutation request, interprets the change type (patch, increase, decrease), and applies it to the atomic value embedded in the entry’s value_ buffer.

    • All operations are atomic and use relaxed memory order for performance.
    • Decreases that would underflow the value return false to indicate failure.

  • update_service::apply_ttl_change(...) recalculates the expiration point for an entry.

    • The expiration is extended or reduced based on the change_type and ttl_type.
    • If the updated key is the same as the scheduled one in the garbage collector, a new expiration is posted to the strand.

Efficiency notes

  • The quota is assumed to be encoded as a native integer in-place within the std::span<std::byte> value_, relying on atomic reinterpretation for updates.
  • TTL mutations are idempotent and thread-safe when accessed through the server strand.
  • The logic is optimized for minimal locking and maximal throughput under high concurrency.

This component provides the safe mutation mechanisms needed to adapt state dynamically, enabling runtime tuning, expiration refreshes, and live quota adjustments.

buffers.

  • This architecture enables high-throughput command processing with minimal overhead.

This component defines the behavioral core of the server by implementing each supported operation (insert, update, set, publish, etc.) in its own dedicated command unit.

Messages

The messages component defines the logic for resolving message sizes dynamically from raw input buffers. It enables zero-copy parsing by determining the exact byte length required to consider a message "complete" for a given request_type.

Responsibilities

  • Maps each request_type to a function capable of calculating the required byte size for that type.
  • Enables early validation before dispatching commands, ensuring that the connection has received enough bytes.
  • Allows the system to process incoming binary streams efficiently, without reallocations or temporary copies.

Implementation details

  • The internal array message_types_[] holds one function pointer per possible message type (std::array<size_callback, 32>).
  • Each callback receives a std::span<const std::byte> and returns the full expected size of the corresponding message.
  • All functions perform minimal checks (usually validating size headers and extracting key lengths or payload sizes).
  • For complex message types (e.g., set, publish, update), the functions parse specific byte positions to extract field lengths and compute total size.
  • Incomplete messages return 0, indicating that the parser should wait for more bytes.

Efficiency notes

  • No heap allocation or data copying occurs during size resolution.
  • Size functions avoid unnecessary branching and rely on fixed offset arithmetic.
  • Designed for ultra-low-latency processing of streaming TCP data, especially under high-throughput conditions.

This component ensures that each message is parsed only when it's fully available, which is critical for a binary protocol system operating at scale.

Metrics Collector

The metrics collector component is available only if ENABLED_FEATURE_METRICS is defined. It tracks the number of reads, writes, and processed commands.

Each connection may also have its own connection_metrics object for per-session statistics. The collector supports real-time observability and post-analysis of traffic.

How it works

  • The collector uses a metrics_timer_ in the shared state, which fires every 60 seconds.
  • Upon each tick, the collector:
    • Iterates over all non-expired entries in the system.
    • Retrieves the number of reads and writes for each entry using atomic operations.
    • Stores per-minute rates and updates accumulators.
    • Also processes per-command metrics for each active connection.
  • After processing entries and connections, it calls compute_all() to finalize the global snapshot.

Internals

  • Metrics are stored using atomic counters for both current-minute and accumulated stats.
  • The timer is scheduled on the strand_ of the state, ensuring serialized access.
  • Each entry contains a metrics_ pointer with six fields: current read/write counters, accumulators, and computed per-minute stats.
  • Connections have their own metrics_ structure, which includes 32 command slots for tracking usage patterns.
  • metric::compute() is responsible for updating internal statistics from raw counters.
  • The system avoids locking entirely by relying on relaxed atomic operations and strand-serialized rescheduling.

This design provides high-frequency metric updates with minimal performance overhead, and maintains accurate telemetry even under high throughput.

Garbage Collector

Although not a separate class, the garbage collection behavior is implicit in how the system recycles buffers and message objects.

Each connection maintains a message object that is cleared and reused after every write. The recycling mechanism avoids unnecessary memory allocations and helps maintain consistent performance.

How it works

  • The method schedule_timer() receives a proposed expiration timestamp. If the time has already passed, it triggers the collector immediately by calling run(). Otherwise, it sets a timer to fire at the exact moment.
  • When the timer fires, run() is called. It:
    • Locks the shared state to avoid concurrent access.
    • Iterates through all entries in the tag_by_key index.
    • Marks entries as expired if their TTL has passed.
    • Physically erases entries that have been expired for more than 10 seconds.
    • Determines the next expiration point and re-schedules itself if needed.

Internals

  • All expiration decisions and erasures are done inside run(), which guarantees consistency.
  • The scheduling is dynamic and based on the real expiration of stored keys.
  • The timer is only active when there are pending entries, keeping overhead minimal.
  • The service logs key operations in debug mode (when NDEBUG is not defined).
  • The whole lifecycle runs inside a strand-protected context by virtue of being synchronized via an external mutex (state->mutex_), not an internal strand.

This design replaces the older scheduler with a more explicit, transparent collector that ensures data integrity while maintaining low memory overhead and deterministic behavior.

Connection Allocator

This component includes both connection_handler_allocator<T> and connection_handler_memory, designed for high-performance memory allocation in asynchronous operations.

It provides custom memory management for handlers used in Boost.Asio's async_read and async_write, minimizing heap allocations and reducing latency.

How it works

  • Every connection owns a small stack-allocated buffer (storage_) embedded in a connection_handler_memory object.
  • When the server initiates an async read or write, it binds the associated lambda or handler using bind_allocator, injecting the custom allocator.
  • If the handler fits in the reserved space and no other handler is currently active, it is allocated from this stack buffer.
  • Otherwise, it falls back to standard heap allocation via operator new.

This pattern is ideal for small lambdas and avoids unnecessary heap pressure during high-concurrency workloads.

Internals

  • connection_handler_memory holds:
    • A 16-byte aligned buffer (std::byte storage_[16]) to store small handlers.
    • A bool in_use_ flag to track usage.
  • connection_handler_allocator<T>:
    • Acts as a wrapper for the memory pool.
    • Overrides allocate() and deallocate() to use connection_handler_memory.
    • Satisfies the C++ standard allocator concept for compatibility with Boost.Asio.

This mechanism enables predictable allocation behavior and supports millions of requests per second without allocator contention.

Response Builder

The response_builder_service is responsible for encoding structured response data into the outgoing buffer, depending on the request type and available data. It's used by the commands logic when composing replies to client queries.

How it works

  • When a command requires a structured response (e.g., CONNECTIONS or GET), it invokes the corresponding method in the response_builder_service.
  • These methods append raw binary data directly into the write_buffer_ of the connection’s reusable message instance.
  • The builder uses pre-known offsets and binary formats for each type of response to ensure efficient, compact serialization.

This approach ensures all responses follow the Throttr protocol spec, maintaining consistency and eliminating overhead from generic serialization libraries.

Internals

  • The service is stateless and uses only static methods.
  • Each method receives:
    • A reference to the destination buffer (std::vector<std::byte>&).
    • Additional context-specific parameters (e.g., UUIDs, TTLs, metrics).
  • The method write_connections_entry_to_buffer is one of the most complex, writing 227 bytes per connection including:
    • UUID (16 bytes)
    • IP version + address (17 bytes)
    • Port (2 bytes)
    • 21 metrics * 8 bytes each (168 bytes)
  • It supports buffer fragmentation by returning how many entries were written per invocation, useful when slicing oversized payloads.

The builder is zero-copy and protocol-bound, designed for raw throughput and minimal latency.

Finder

The finder component is responsible for retrieving entries from the in-memory store. It ensures the existence and validity of keys before commands proceed, acting as a gatekeeper for operations like GET, SET, INCR, etc.

It is invoked through state->finder_->find_or_fail(...), returning a valid iterator or signaling failure.

How it works

  • Commands delegate lookup responsibility to the finder, which performs a search in the tag_by_key index of the storage.
  • If the key exists and has not expired, the iterator is returned.
  • If not found or marked as expired, std::nullopt is returned, and depending on context, the failure is registered in a batch buffer.
  • If metrics are enabled (ENABLED_FEATURE_METRICS), each successful read increments the key’s reads_ counter for later aggregation.

This approach allows commands to remain agnostic of the underlying indexing and expiration logic.

Internals

  • The find_service is a stateless singleton with static methods.
  • Two methods are provided:
    • find_or_fail(...): simple lookup with optional metrics tracking.
    • find_or_fail_for_batch(...): same as above, but also appends a failure marker to the batch buffer if lookup fails.
  • The underlying storage uses Boost.MultiIndex with a tag_by_key index for fast key-based lookups.
  • Expired keys are filtered out by checking the .expired_ flag, preventing access to stale data without needing immediate deletion.

This component is lightweight, synchronous, and tightly coupled with the command lifecycle, enabling deterministic and efficient behavior.

Creator

The creator component is responsible for inserting new entries into the in-memory store. It is primarily used by commands like SET, INSERT, and SUBSCRIBE to allocate new records without overwriting existing ones unless specified.

Responsibilities

  • Create new entries only if they don’t already exist (when as_insert is true).
  • Calculate and assign the expiration timestamp based on the TTL and its type.
  • Attach metrics to each entry for read/write tracking.
  • Trigger the garbage collector scheduler if the inserted key’s expiration is earlier than currently scheduled entries.

Core behavior

  • The method create_service::use(...) receives a key, value, TTL details, entry type, and request ID.
  • It creates a new entry_wrapper with the decoded key and value, computes the expiration time, and tries to insert it into the state->storage_.
  • If insertion succeeds, it performs the following:
    • Updates metrics (writes_) on the new entry.
    • Iterates over the index to determine if the new expiration time should preempt the garbage collector’s timer.
    • Posts a task to the strand to reschedule if needed, minimizing contention.

Efficiency notes

  • The component uses Boost.MultiIndex for efficient key lookup and insertion.
  • The current implementation performs a linear scan over the storage to find the earliest expiration point, which could be optimized by storing the earliest timestamp separately.
  • TTL handling supports multiple modes (depending on ttl_types), abstracted behind get_expiration_point(...).

This component plays a central role in maintaining correct memory hygiene, timing behavior, and system consistency during dynamic entry creation.

Updater

The updater component is responsible for mutating existing attributes of entries, such as quota values or expiration time (TTL). It ensures updates are valid, atomic, and do not violate consistency or overstep logical constraints.

Responsibilities

  • Apply arithmetic or direct value mutations to quota-related fields using std::atomic.
  • Modify TTL values based on the ttl_type (seconds, milliseconds, nanoseconds), supporting patch, increase, or decrease operations.
  • Post expiration reschedule tasks when the modified key is currently the one scheduled for purging.

Core behavior

  • update_service::apply_quota_change(...) receives a target entry and mutation request, interprets the change type (patch, increase, decrease), and applies it to the atomic value embedded in the entry’s value_ buffer.

    • All operations are atomic and use relaxed memory order for performance.
    • Decreases that would underflow the value return false to indicate failure.

  • update_service::apply_ttl_change(...) recalculates the expiration point for an entry.

    • The expiration is extended or reduced based on the change_type and ttl_type.
    • If the updated key is the same as the scheduled one in the garbage collector, a new expiration is posted to the strand.

Efficiency notes

  • The quota is assumed to be encoded as a native integer in-place within the std::span<std::byte> value_, relying on atomic reinterpretation for updates.
  • TTL mutations are idempotent and thread-safe when accessed through the server strand.
  • The logic is optimized for minimal locking and maximal throughput under high concurrency.

This component provides the safe mutation mechanisms needed to adapt state dynamically, enabling runtime tuning, expiration refreshes, and live quota adjustments.

Last Updated::
Contributors: Ian Torres
